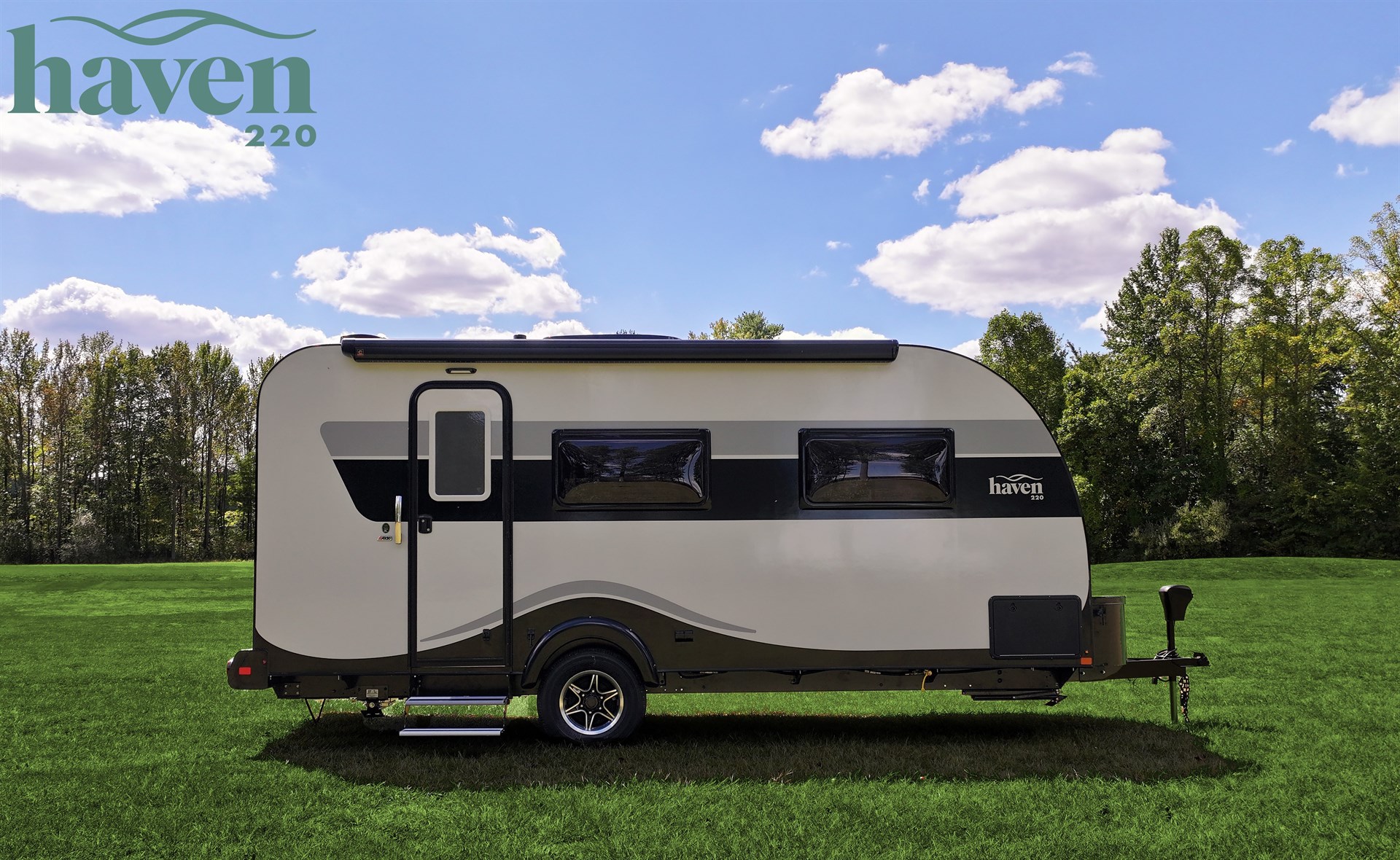

nuCamp Haven 220

Library Image

The 2026 Haven is the newest addition to the nuCamp lineup. This thoughtfully designed travel trailer is over 22′ long and offers a roomy interior. True to its name, Haven represents a place of comfort and rest that provides campers with a personal sanctuary wherever their journeys take them.

The Haven Travel Trailer is hand-built in Ohio’s Amish country, maximizing comfort and functionality while maintaining premium craftsmanship. Highlights include a walk-around queen bed (with a twin bed floor plan available later this year), an ample dry bath for residential-style convenience, and a large four-person dinette. The open layout features many windows to create a bright and airy feel, making the Haven the perfect “home on the road.”

   UNIT SPECIFICATIONS:
Overall Exterior Length
23' 1"
Overall Exterior Width 8' 2"
Overall Exterior Height 9' 9"
Sleeping Area 60" x 75"
Interior Height 82"
Fresh Water (Total) 35 gal
Fresh Water (Usable) 34 gal
Gray Water 35 gal
Black Water 25 gal
Tire Size 225/75R15
GAWR 5,000 lbs
Tongue Weight (Dry) 416 lbs
Total Gross Weight (Dry) 3,933 lbs
* Dry weight is the camper’s weight with standard equipment, excluding propane, tank fluids, cargo, and optional equipment. All weights, capacities, and dimensions are approximate. The owner is responsible for selecting the suitable tow vehicle and tow equipment for proper and safe operation. *

BASE PACKAGE

  • Premium Soft-Close Cabinetry
  • Froli Sleep System
  • Alde® 3030+ Heating/Hot Water System
  • Aventa A/C
  • 2-Burner Stove
  • Deep Sink w/ High Arch Faucet
  • 4.6 cu ft 12-volt Compressor Refrigerator
  • Microwave
  • Stargazer Windows
  • Spacious Dry Bath
  • 4-Person Dinette
  • Dinette Converts To Additional Sleeping Area
  • 24″ Wide Entry Door w/ Integrated Screen Door
  • Composite Flooring
  • Steel Spare
  • Electric Brakes
  • Nautilus w/ External Shower
  • External LP Hook-Up
  • Pass Through Garage Storage
  • 1-1/4″ Rear Hitch Receiver (150 lbs Max Capacity)
  • Pitched Axle
  • Molded Fenders
  • Entry Door Handle & Double Step
  • Bluetooth® Media Center w/ Smart TV
  • 12′ Awning

CONVENIENCE PACKAGE

  • Roof Top Solar Panel
  • External Solar Port
  • 100Ah 12-volt Lithium Battery
  • 1,200-watt Power Inverter
  • Intelligent Battery Detection Converter
  • Bluetooth® Smartshunt Battery Monitor

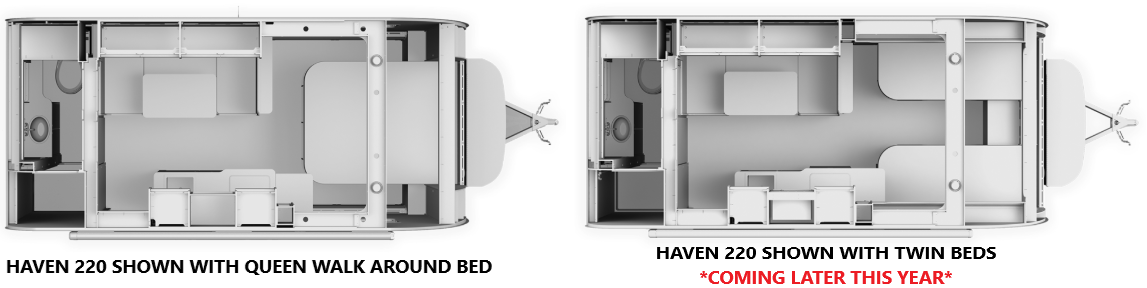

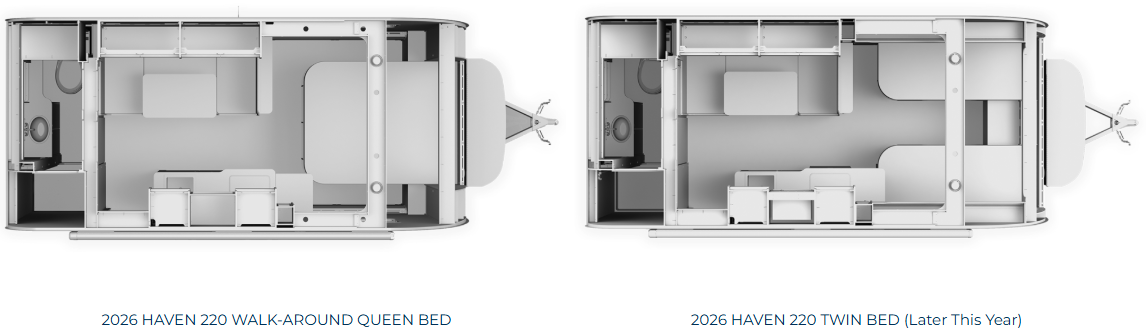

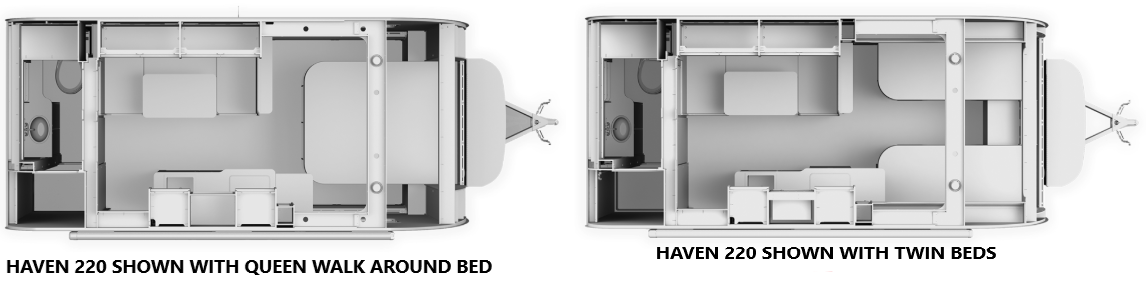

Floorplans
Library Image



Library Image
