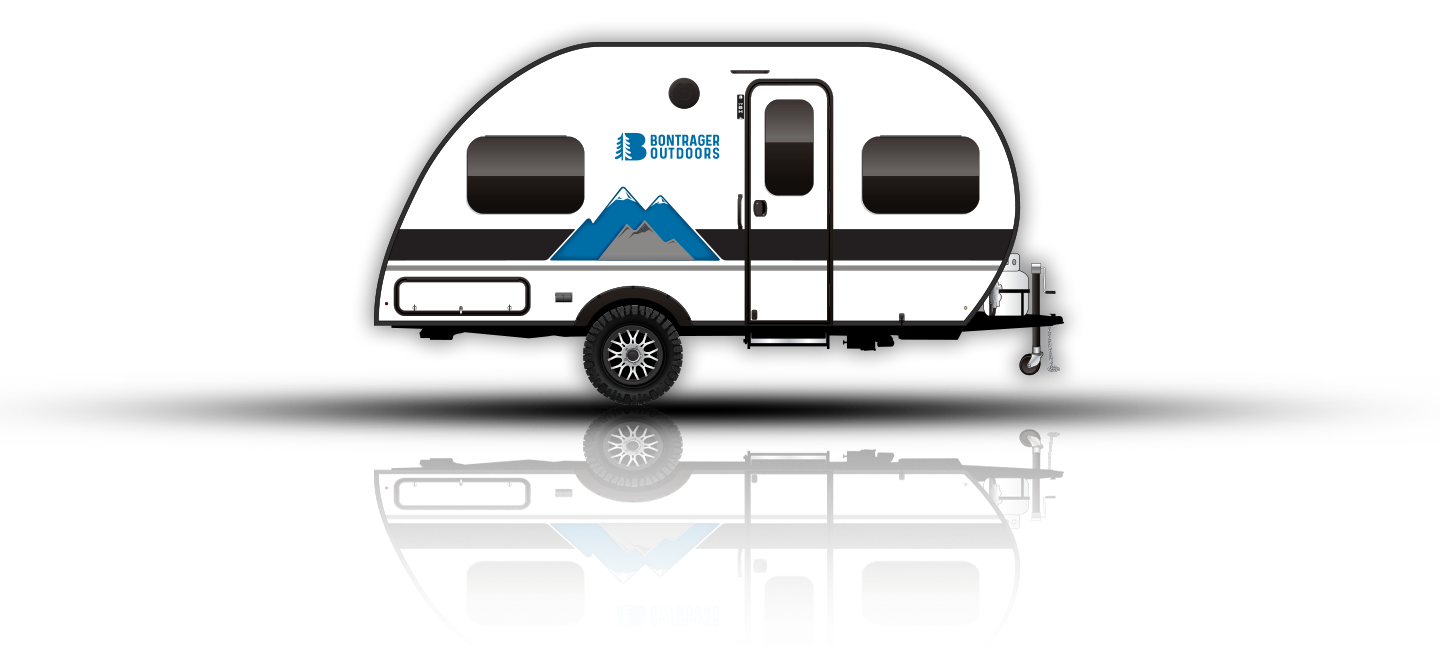

Bontrager Outdoors Compact Line offers light, compact travel trailers, perfect for adventurists escaping into the wild. The Standard Line is bigger and bolder than our Compact trailers made to discover new vistas and connect deeply with nature and enjoy the little luxuries RVers expect.
COMPACT FLOORPLANS

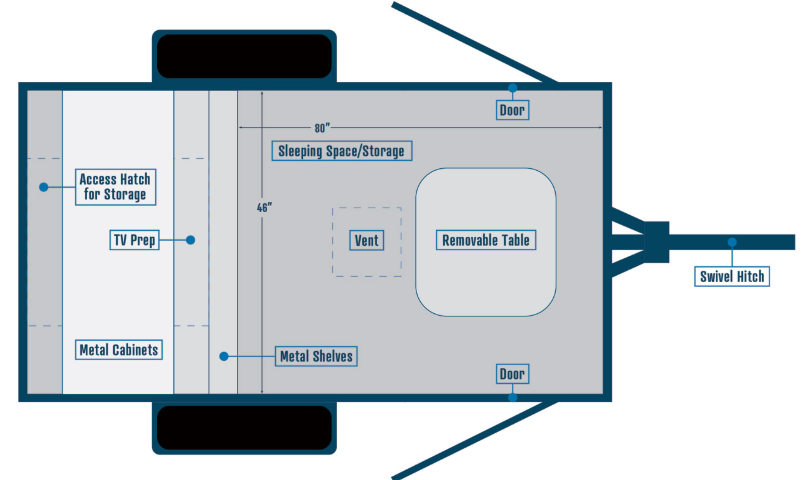

7 ROD
Exterior Length: 10’7” | Exterior Height (Top of Awning): 5’2” | Exterior Width: 5’8”
7ROD Specifications
Dry Hitch Weight: 63
Unloaded Vehicle Weight: 500
Cargo Carrying Capacity: 663
Gross Vehicle Wt. Rating: 1163
Exterior Box Width: 4’1”
Interior Height (main): 3’5”
Awning: N/A
Fresh Water Capacity (gal): 0
Grey Water Capacity (gal): 0
Black Tank Capacity (gal): 0
Propane Unit (lbs): 0
Sleeping Capacity: 2
Truma Combi Water Heater: N/A
Truma Combi Furnace BTU: N/A
Tire Size: ST185/ 80R13
Dry Hitch Weight: 63
Unloaded Vehicle Weight: 500
Cargo Carrying Capacity: 663
Gross Vehicle Wt. Rating: 1163
Exterior Box Width: 4’1”
Interior Height (main): 3’5”
Awning: N/A
Fresh Water Capacity (gal): 0
Grey Water Capacity (gal): 0
Black Tank Capacity (gal): 0
Propane Unit (lbs): 0
Sleeping Capacity: 2
Truma Combi Water Heater: N/A
Truma Combi Furnace BTU: N/A
Tire Size: ST185/ 80R13

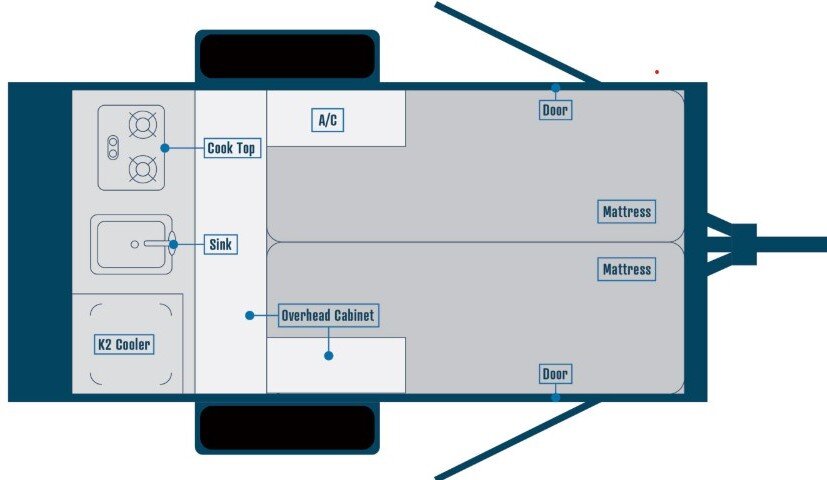

10 HD
10HD Specifications
Dry Hitch Weight: 140
Unloaded Vehicle Weight: 1300
Cargo Carrying Capacity: 1040
Gross Vehicle Wt. Rating: 2340
Exterior Box Width: 5’
Interior Height (main): 46”
Awning: 7’6”
Fresh Water Capacity (gal): 26
Grey Water Capacity (gal): 0
Black Tank Capacity (gal): 0
Propane Unit (lbs): 20
Sleeping Capacity: 2
Truma Combi Water Heater: N/A
Truma Combi Furnace BTU: N/A
Tire Size: ST235/ 75R15C
Dry Hitch Weight: 140
Unloaded Vehicle Weight: 1300
Cargo Carrying Capacity: 1040
Gross Vehicle Wt. Rating: 2340
Exterior Box Width: 5’
Interior Height (main): 46”
Awning: 7’6”
Fresh Water Capacity (gal): 26
Grey Water Capacity (gal): 0
Black Tank Capacity (gal): 0
Propane Unit (lbs): 20
Sleeping Capacity: 2
Truma Combi Water Heater: N/A
Truma Combi Furnace BTU: N/A
Tire Size: ST235/ 75R15C
Exterior Length: 13’2” | Exterior Height (Top of Awning): 6’10” | Exterior Width: 6’9”

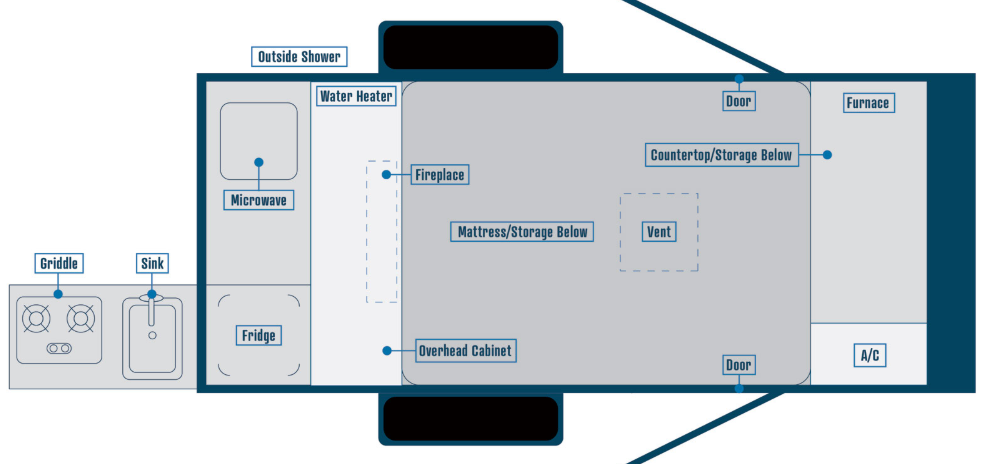

12 ROK
Exterior Length: 15’9” | Exterior Height (Top of Awning): 6’10” | Exterior Width: 6’9”
12 ROK Specifications
Dry Hitch Weight: 140
Unloaded Vehicle Weight: 1780
Cargo Carrying Capacity: 1400
Gross Vehicle Wt. Rating: 3180
Exterior Box Width: 5’
Interior Height (main): 46”
Awning: 7’6”
Fresh Water Capacity (gal): 26
Grey Water Capacity (gal): 0
Black Tank Capacity (gal): 0
Propane Unit (lbs): 20
Sleeping Capacity: 2
Truma Combi Water Heater: 2.64
Truma Combi Furnace BTU: 14,300
Tire Size: ST235/ 75R15C
Unloaded Vehicle Weight: 1780
Cargo Carrying Capacity: 1400
Gross Vehicle Wt. Rating: 3180
Exterior Box Width: 5’
Interior Height (main): 46”
Awning: 7’6”
Fresh Water Capacity (gal): 26
Grey Water Capacity (gal): 0
Black Tank Capacity (gal): 0
Propane Unit (lbs): 20
Sleeping Capacity: 2
Truma Combi Water Heater: 2.64
Truma Combi Furnace BTU: 14,300
Tire Size: ST235/ 75R15C
Standard Floorplans

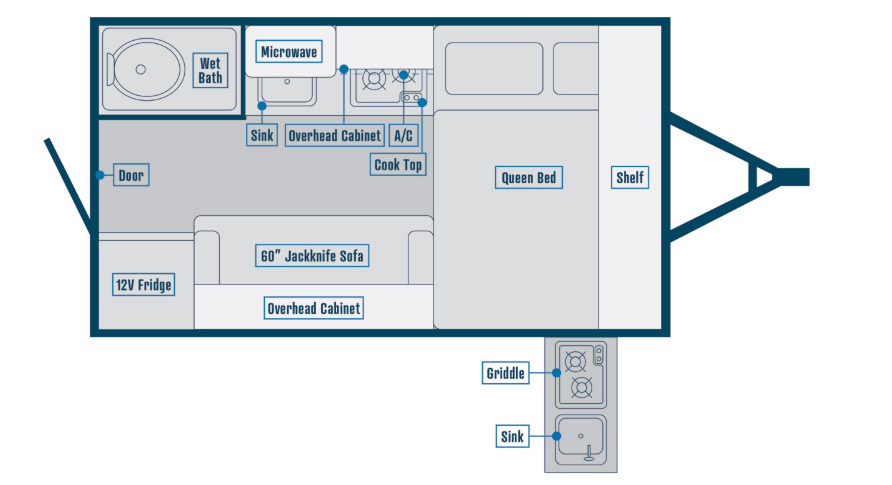

15 RE
Exterior Length: 15’6” | Exterior Height (Top of Awning): 8’6” | Exterior Width: 6’9”
15RE Specifications
Dry Hitch Weight: 240
Unloaded Vehicle Weight: 2360
Cargo Carrying Capacity: 920
Gross Vehicle Wt. Rating: 3280
Exterior Box Width: 6’9"
Interior Height (main): 6'2”
Awning: 11’
Fresh Water Capacity (gal): 18
Grey Water Capacity (gal): 23
Black Tank Capacity (gal): 23
Propane Unit (lbs): 20
Sleeping Capacity: 3
Truma Combi Water Heater: 2.64
Truma Combi Furnace BTU: 14,300
Tire Size: ST235/ 75R15C
Dry Hitch Weight: 240
Unloaded Vehicle Weight: 2360
Cargo Carrying Capacity: 920
Gross Vehicle Wt. Rating: 3280
Exterior Box Width: 6’9"
Interior Height (main): 6'2”
Awning: 11’
Fresh Water Capacity (gal): 18
Grey Water Capacity (gal): 23
Black Tank Capacity (gal): 23
Propane Unit (lbs): 20
Sleeping Capacity: 3
Truma Combi Water Heater: 2.64
Truma Combi Furnace BTU: 14,300
Tire Size: ST235/ 75R15C

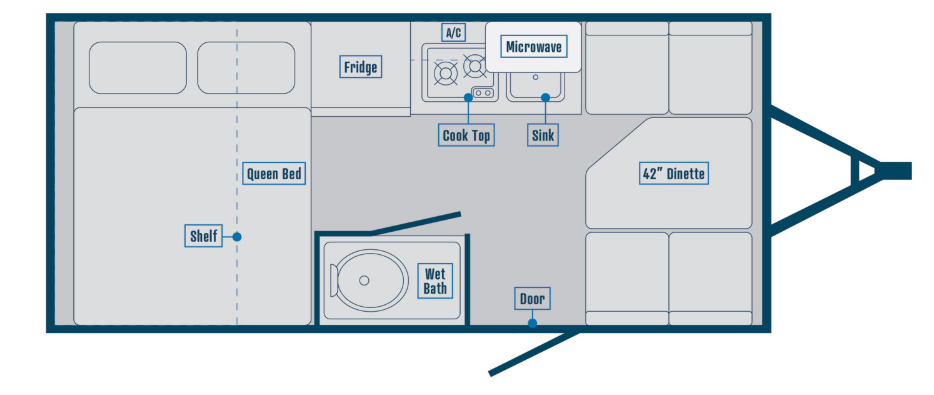

17FD
17FD Specifications
Dry Hitch Weight: 260
Unloaded Vehicle Weight: 2260
Cargo Carrying Capacity: 1040
Gross Vehicle Wt. Rating: 3300
Exterior Box Width: 6’9"
Interior Height (main): 6'2”
Awning: 8’
Fresh Water Capacity (gal): 26
Grey Water Capacity (gal): 18
Black Tank Capacity (gal): 18
Propane Unit (lbs): 20
Sleeping Capacity: 4
Truma Combi Water Heater: 2.64
Truma Combi Furnace BTU: 14,300
Tire Size: ST235/ 75R15C
Dry Hitch Weight: 260
Unloaded Vehicle Weight: 2260
Cargo Carrying Capacity: 1040
Gross Vehicle Wt. Rating: 3300
Exterior Box Width: 6’9"
Interior Height (main): 6'2”
Awning: 8’
Fresh Water Capacity (gal): 26
Grey Water Capacity (gal): 18
Black Tank Capacity (gal): 18
Propane Unit (lbs): 20
Sleeping Capacity: 4
Truma Combi Water Heater: 2.64
Truma Combi Furnace BTU: 14,300
Tire Size: ST235/ 75R15C
Exterior Length: 18' | Exterior Height (Top of Awning): 8’8” | Exterior Width: 6’9”
